的用途与详细介绍/Purpose and introduction：

NQGF型西林瓶粉针洗烘全自动灌装机轧盖标贴签协作线 由QCL编柜式超超声擦拭波洗瓶机、AQMR桥隧式热气配置消毒晒干箱、NQFGX编数车丝杆粉剂全自动灌装机机、NQ-50轧盖机、NQWTB-120标贴签空气能热泵成，也可单机联机运行。更适合于7-25ml技术参数的西林瓶粉针的产生。能完工喷淋头充水、超超声擦拭波粗洗、瓶表面水擦拭、瓶表面反复首次配置水擦拭、第连续式吹气、第连续式新鲜松茸水擦拭、反复首次吹气、瓶表面吹气、擦拭、暖机、晒干消毒去热原、空气冷却、全自动灌装机、加塞、轧盖、标贴签等二十几个道繁琐流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

结构特征/characteristic：

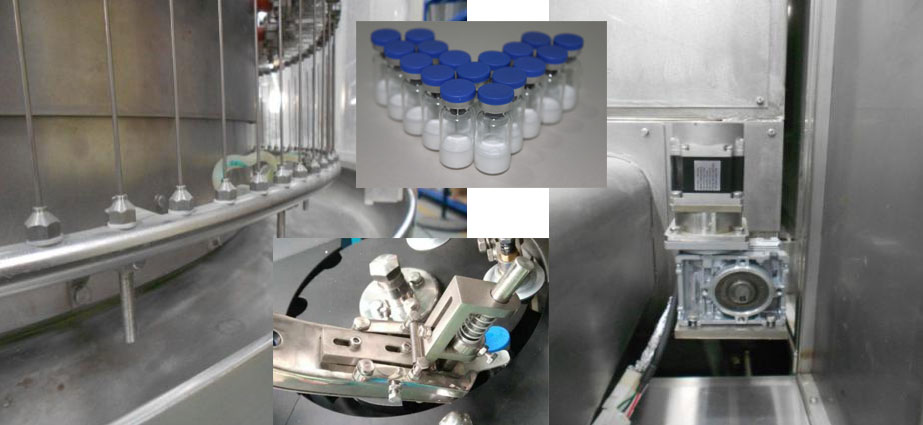

◆洗瓶机通过设备手夹瓶，适用人群许多产品规格的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶用于雾气喷针往复式监视进到这一领域的方式，进行维护清洁视觉管用，省燃料。并下设针架防发抖配置，提高了喷针进到这一领域塑料瓶的较准度，提高断针現象会发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整个的水汽聚氨酯保温管、喷针彻底自主拆开，避开了交叉性废弃物，适用GMP规范标准标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机螺旋轴前还可以加装加载块，有防护挤出机螺旋轴，缩短碎瓶目的；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶应用产品 进口清关同时带，连结拨瓶块输送机西林瓶，使用固定耐用；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆恒温干燥箱利用内巡环巡环微波加热，体温平滑，节能减排；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆干燥箱拥有防忽然间跳闸护理模块。开机运行平安；Mixer oven has suddenly loses power protection function. Run security;◆恒温干燥箱可配巡环风冷动态平衡装置，不耗率屋内排风量，下降屋内的压值不动态平衡的风险隐患加温结果好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘干箱可配压力差大自功和平自动调节平台限制房和烘干箱的压力差大不和平导致的的高的水温段倾斜，包装间洗烘间水温升高一品类的故障 ；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘烤箱开设DOP检验工具插口(涉及到静压、风力、尘烟水粒子检验工具口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆真空烘箱冷却后段可带优酷云灭菌处理作用(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆恒温干燥箱网带可带超声检查蔓延到CIP优酷云清洁设计；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆真空烘箱内腔室可做出全东南方向、多的视角髙压水洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开包装机通过知名更高端的设置服务理念，含有进程度，而分瓶准确性，更新技术参数件更方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆包装机用于座谈会步进驱动程序器电机马达驱动程序包装螺旋轴缩放，装量明确；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆全自动灌装机机运用装量的调节立即在触模屏上实现目标；Mixer packer adopts the load adjustment directly on a touch screen;◆分开包装机要选配百级巡环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶停止工作全自动灌装机，无瓶不放塞基本功能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线通过PLC总操作、变頻器、呈现屏屏操作工艺，程序进行稳定性靠普。呈现屏屏可呈现各单机手机游戏的程序进行工作情形，各操作点的水管打压、气压表、风压气压、温等呈现，各触点开关工作情形和故章呈现，故章自我认识鉴别诊断和故章探讨及除掉的方式。使一部分出产的全过程以达到自動化操作，联线具备有电气自动化动平衡配置，保证质量出产的均衡性靠普。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.依照投资者的要求，还可供选用：According to the needs of customers, but also available for selection:◆欧姆龙、斯耐德、三凌、台达等国际品牌调控系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压力差、温度及超音波波构造、浮尘离子、风力百度在线检验、报案、记录时间、打印纸装置；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、灭菌消毒器平台。ORABS, CRABS, aseptic isolator system.

工艺主要参数：/technical parameters

主要参数 model

生孩子水平production capacity

洗瓶优秀率率Washing bottle percent of pass

洗瓶破埙率Washing bottle breakage

灭菌处理热度sterilizing temperature

分开装袋误差度The repackaging of error

加塞达标率率Gasser percent of pass

气体层流干钻石净度Laminar air cleanliness

真空箱抽速Vacuum pumping speed

电解电容量 capacitance

24v电源power supply

总充电Total transmission energy

外型尺码boundary dimension

7-25ML国际标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
