适用范围与间介/Brief Introduction：

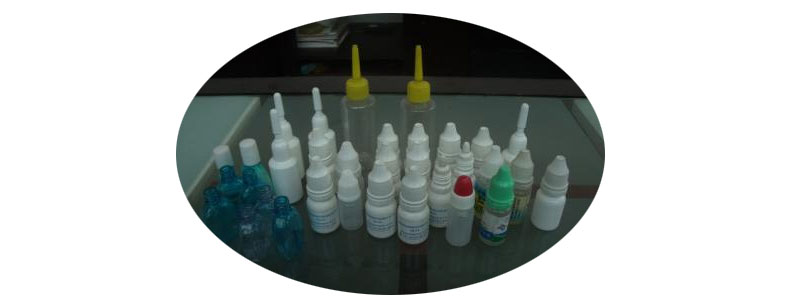

该设备常应用于2-30ML所有质材的椭圆形扁形塑料制品或夹丝塑料瓶子的眼灵药罐装线、電子烟油等小药量罐装线.该设备由高运作精度轴承公司测量范围公司可以给出测量范围等分盘精准度准确定位上塞上盖;t瞬时速度快轴承公司传输可以给出旋盖头的上下;恒力矩旋盖;消化吸收泵检定罐装线;触摸式屏运作.无瓶不罐装线,不放内塞,外盖.具精准度准确定位精准度,传输能保持稳定,保护的饮料瓶盖,检定准.运作简单化等优势之处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特性/Characteristic：

◆微线上重设、装量精确性、运行以便于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆虚拟主机速比可采取变頻变頻调压。the mainframe running speed is stepless frequency conversion.◆产生量自功化学发光法调整。the product quantity can be controlled. ◆多类发动机故障表明效果(如低压力表。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自功暂停服务性能，对某个轮轨显示持续无灌装线、无内塞的情况可自功暂停服务。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺产品参数/Main Technical Parameters：

适用于要求Filling Volume	2-30ml
加工意识Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
分装要求Filling Precision	≤±1%
外接电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自己上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
电机功率 Power	2.0 kw
机械设备净含量Weight	550 kg
自己的外观长宽Dimension	1800*1000*1500mm
